| No. | Parameter | Unit | LAN-WDM | |||

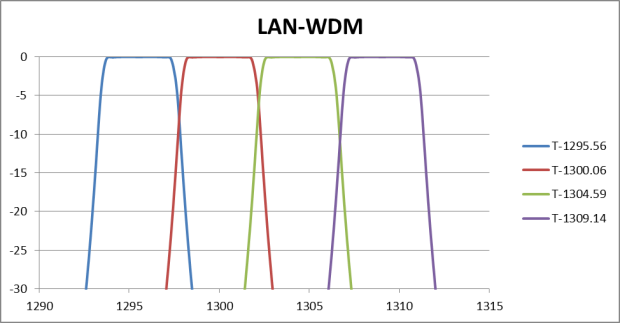

| 1 | Operating Wavelength Range | nm | 1280~1330 | |||
| 2 | Center Wavelength (λc) | nm | 1295.56 | 1300.06 | 1304.59 | 1309.14 |
| 3 | Passband (PB) | nm | 2.8 | |||
| 4 | Adjacent Channel Isolation | dB | >27 | |||
| 5 | Max. IL within PB | dB | <0.5 | |||
| 6 | Ripple within PB | dB | <0.3 | |||
| 7 | PDL within PB | dB | <0.2 | |||
| 8 | Reflection of Backside AR Coating | % | <0.2 | |||
| 9 | A.O.I. | degree | 8,10,12…etc. | |||
| 10 | Dimension(L*W*T) | mm | Can be customized | |||
